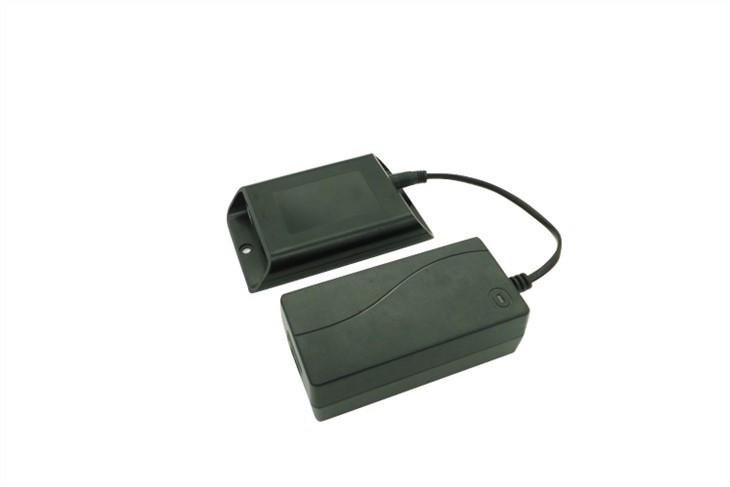

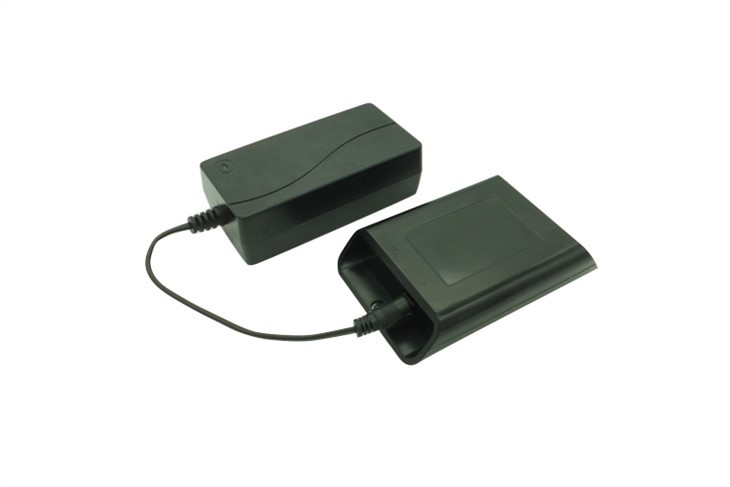

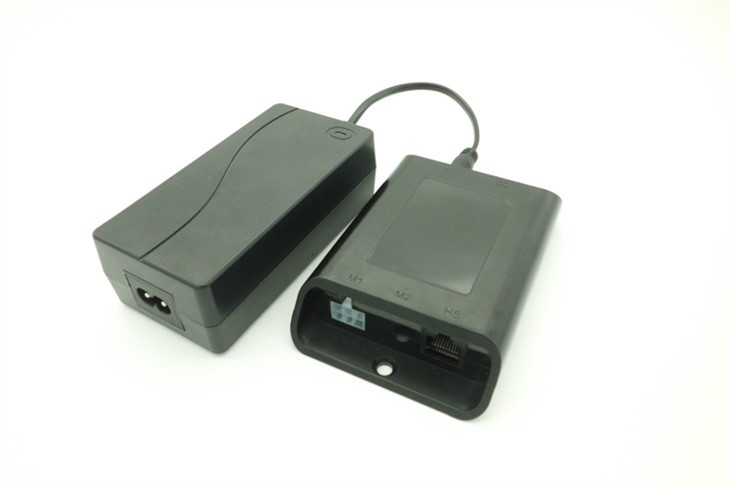

Power Adjustable Desk Control Box belongs to 1-motor control box with external power supply.
It needs to work with an adapter.
Basic property
Input: 24-36V
Output:12-32V
Maximum power: 150W
Duty cycle: 2min ON/18min OFF
Product scheme: MOS conductor
Description of Adapter:
1. Input parameters: 100-240VAC/50-60HzA
2. Output parameters: 29V1.8A
3. Maximum power: 150W
4. Working mode: 2 Min: 18Min/ ON: OFF
5. Working environment temperature: 0-40
6. Input interface: C8
7. Output interface: 01
8. Safety certificates: UL/GS/CE/KC/PSE/SAA/RCM
Product size: 10.5*5.5*3.5cm
OEM: OEM customization
Comparison of three generations of control boxes made by Jingshi Technology
products | 1st generation | 2nd generation | 3rd generation |
Drive way | Mos+ Relay | Mos | Mos |
Number of motors | 1,2,3 | 1,2,3 | 1,2 |
Hand control method | Digital display / two keys / touch | Digital display / two keys / touch | Digital display / two keys |
Anti-pinch method | Current/torsion sensor | Current + patented sensor | Current + patented sensor |
Anti-pinch detection accuracy | 15Kg | 5Kg | 5Kg |
Bluetooth | Support | Support | Support |
Height memory | Two keys 0/digital display 4 groups | Two keys 1/digital display 3 groups | Two keys 1/digital display 3 groups |
Multi-machine parallel | not support | Support up to 16 | not support |
Standby power consumption | 0.2W | 0.1W | 0W |
EMC | Pass | Pass | Pass |
Battery interface | Have | No | Have |
modify parameters on PC | Support | Support | Support |
Desktop auto balance | No | Have | Have |
protection | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch |
Types of standing desk control box:
Applications of Power Adjustable Desk Control Box
