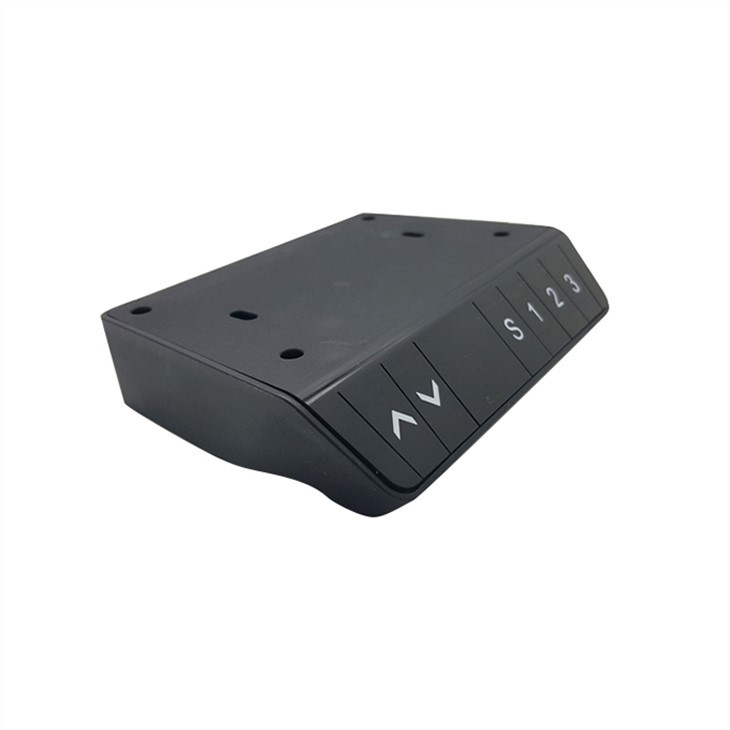

Motorized table frame control box is the integration of lifting desk control box and hand control, belonging to external power control box. In the front, there are 6 keys which make it can memorize 3 different heights, so it’s very easy to adjust the table to the height suitable for you.
Compared to other control boxes, obviously, it has an advantage of combining the functions both control boxes and hand control. This new product is creative and innovative.
Product parameters of Control Box
Input voltage | 24-36V |
Output voltage | 12-32V |
size | 130×94×25mm |
Product solutions | MOS scheme |
Types of standing desk control box we produce:
Comparison of three generations of control boxes made by JS Technology
products | 1st generation | 2nd generation | 3rd generation |
Drive way | Mos+ Relay | Mos | Mos |
Number of motors | 1,2,3 | 1,2,3 | 1,2 |
Hand control method | Digital display / two keys / touch | Digital display / two keys / touch | Digital display / two keys |
Anti-pinch method | Current/torsion sensor | Current + patented sensor | Current + patented sensor |
Anti-pinch detection accuracy | 15Kg | 5Kg | 5Kg |
Bluetooth | Support | Support | Support |
Height memory | Two keys 0/digital display 4 groups | Two keys 1/digital display 3 groups | Two keys 1/digital display 3 groups |
Multi-machine parallel | not support | Support up to 16 | not support |
Standby power consumption | 0.2W | 0.1W | 0W |
Quality management concept
1. Quality embodies the value of companies and win respect of clients. It’s vital for the survival and development of enterprises.
2. We examine all raw materials randomly. Whenever defects happen, the entire batch must be examined. If incidence of defects surpasses 0.2%, the materials will be returned to suppliers and correction is required.
3. All products cannot be released before finishing 2-hour aging test. We definitely don’t allow any products that fail ageing test to enter the market.
4. We disassemble and analyze all the defective products once they are returned from markets. We definitely don’t allow any products that need repair to enter the market.
If you have any questions about Motorized table frame control box, don’t hesitate to contact us.
