Desktop Sit Stand Desk Control Box

5 0 Reviews
product description of Desktop Sit Stand Desk Control Box · JSM-2.1-0.3W is an energy-saving control box, suitable for multi-seat lift tables · Equipped with a bounce back function to ensure the safe operation of the lift table · With slow start and slow stop functions · 0.3W ultra-low standby...
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Product Introduction

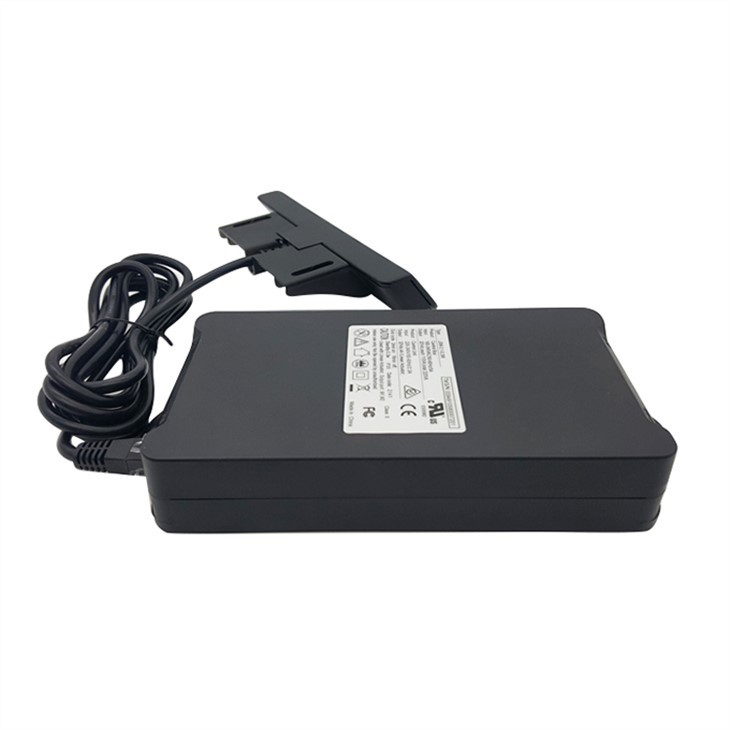

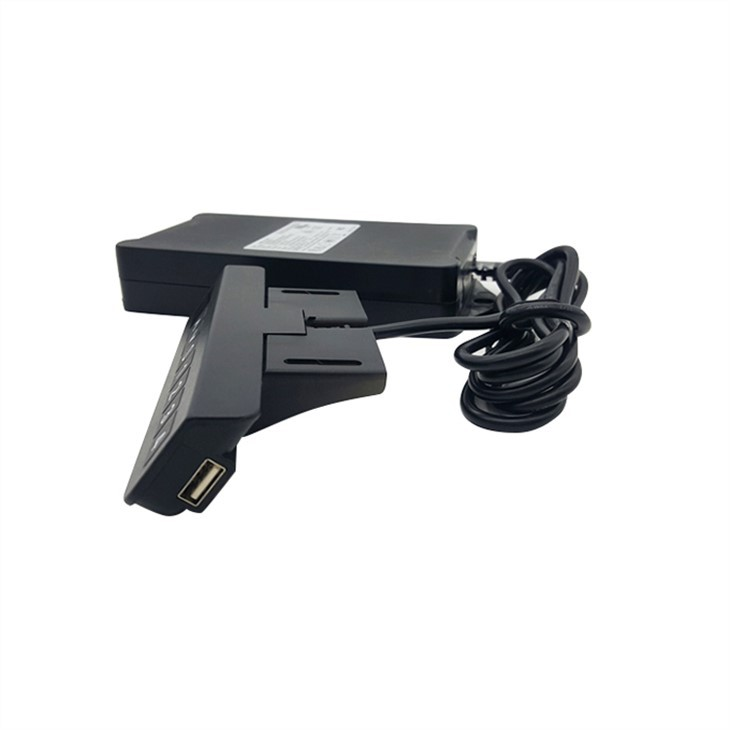

product description of Desktop Sit Stand Desk Control Box

· JSM-2.1-0.3W is an energy-saving control box, suitable for multi-seat lift tables

· Equipped with a bounce back function to ensure the safe operation of the lift table

· With slow start and slow stop functions

· 0.3W ultra-low standby power consumption


China sit stand desk control box.jpg

Features

Number of control columns: 1-2

Colour: Black

Shell: ABS material

Installation method: can be fixed on the desktop board by screws

Overload protection: avoid overload operation by limiting the current to a specific value

Overheating protection, motor open circuit, Hall fault, motor short circuit, low voltage, illegal power failure, illegal plugging and unplugging, excessive desktop tilt angle, anti-pinch upward and downward



Product parameters



Input voltage

100-240V

Maximum power

350W

Standby power consumption

0.3W

size

166×95×32mm

weight

0.42kg

Product solutions

MOS scheme



Instructions of Desktop Sit Stand Desk Control Box

Duty cycle: continuous work for up to 2 minutes within 20 minutes

Use environment: indoor

China control box label.jpg

Type: JSM-2.1-0.3W

Input: 100-240V 50-60Hz, 5A

Output: 32Vdc, each 110VA, total 220VA

Maximum power: 350W

Standby power consumption: <0.3W

Duty cycle: 2min ON/18min OFF

Product scheme: MOS conductor

Certificates: CE-EMC, CE-LVD, UL, FCC, SAA, RCM, etc.

China standing desk controller certificates.jpg

wholesale switch panel 7-key USB.jpg

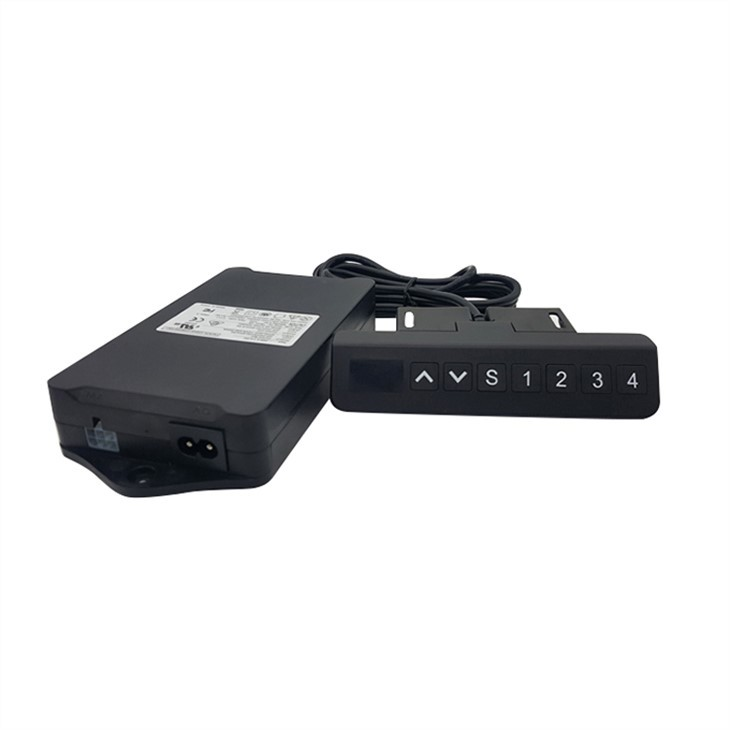

The Standing Desk Hand Control panel holds an advantage of 7 buttons, able to set 4 different heights in memory. There is a USB interface on the side enabling users to charge cellphones.

wholesale sit stand desk control.jpg

Photos of Changxing Jingshi Technology

sit stand desk control box manufacturers.png

Company related introduction: Jingshi company emphasizes technological innovation and improvement of purchase channels, and collaborate with partners to realize product stability. We hold independent intellectual property rights and patents and develop markets of over 10 countries around the world. Our products have obtained many global certificates, for example UL, CB, CE, etc. In 2018, Jingshi company was evaluated by clients as China's leading solution provider regarding lifting table control system. Contact us for more information about Desktop Sit Stand Desk Control Box.


Previous:
Next:

Related Products

Model JSM-2.1-0.3W
Input 100-240V 50/60Hz, 5A
Output 32Vdc, each 110VA, total 220VA
Maximum power 350W
Standby <0.3W
Operating mode 2min ON/18min OFF
Product Solution MOS conductor
Global approvals CE FC UL, UKCA, SAA, KC
0
0
Model JSM-4.1-0.3W
Input 100-240V 50/60Hz, 8A
Output 32Vdc, each 110VA, total 220VA
Maximum power 600W
Standby <0.3W
Operating mode 2min ON/18min OFF
Product Solution MOS conductor
Global approvals CE FC UL
0
0
Model JSM-1.1-0.3W
Input 100-240V 50/60Hz, 2.5A
Output 24Vdc, each 100VA
Maximum power 150W
Standby <0.3W
Operating mode 2min ON/18min OFF
Product Solution MOS conductor
Global approvals CE FC UL
0
0
Model JSM-3.1-0.3W
Input 100-240V 50/60Hz, 8A
Output 24Vdc, each 110VA, total 330VA
Maximum power 450W
Standby <0.3W
Operating mode 2min ON/18min OFF
Product Solution MOS conductor
Global approvals CE FC UL
0
0
Touch screen design
Lifting function,3 memory positions can be selected
Optional USB charging
Angular design, with 1.5m connection cable
0
0
Touch screen design
Lifting function,3 memory positions can be selected
Optional USB charging
Compact and flexible design, with 1.5m connection cable
0
0
Piano key design with background light
Lifting function,3 memory positions can be selected
Optional USB charging
Strong design technology, with 1.5m connection cable
0
0
Bluetooth support
OLEO display, rich menu
With two memory buttons
Smart appearance, RGB light effect
Up and down operation mode is flexible and fast
The startup Logo is displayed. Can customize the logo
0
0
Bluetooth support
With two memory buttons
Smart appearance, RGB light effect
Slim touch keys with background light
Supports max 18W Type-c fast charging
OLEO display, rich menu, Can customize the logo
0
0
OLEO display, rich menu
The knob can be pressed as a key
Knob comes with RGB light effect
The knob automatically rotates with the table
The startup Logo is displayed. Can customize the logo
Knob using BLOC motor, through the FOC control can simulate a variety of feel
0
0
